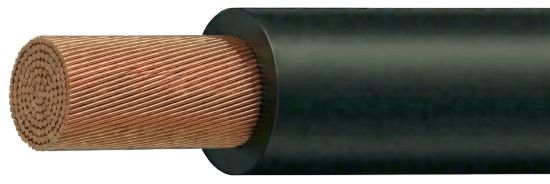

MTW21(K)-1283-09

Conductor

Conductor Count:

1

AWG Size:

2 AWG

Number of Strands:

665

Stranding Class:

Class K

Material:

Annealed Bare Copper

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.060

Diameter:

0.427

Color Code:

White

Weight:

254

Markings

Footage Markers:

Yes

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E207519 2AWG (UL) MTW 600V OR THW-2 90C DRY/WET SUN RES OR BOAT CABLE 105C DRY 75C WET BC-5W2 OIL RES I 600V VW-1

Approvals

Approvals List:

• UL listed as Type MTW per UL Standard 1063 for machine tool wire

• Meets requirements of UL Standard 83 for Type THW-2/VW-1

• UL approved for Sunlight and Oil Resistant I applications

• UL Approved for CT use applications for 1/0AWG and larger

• UL listed as Boat Cable per UL Standard 1426 for Electrical Cables

• CSA listed as Type AWM I A/B 105C 600V FT1 per CSA Standard 210-15

• CSA listed as TEW per CSA Standard C22.2 No. 127-18

• UL recognized components AWM 1015/1032 per UL standard 758 for internal wiring of appliances

• UL recognized components AWM 1283/1346 per UL standard 758 for internal wiring of appliances for 6AWG – 2AWG

• UL recognized components AWM 1232 per UL standard 758 for internal wiring of appliances for 6AWG – 4/0AWG

• UL recognized components AWM 1338 per UL standard 758 for internal wiring of appliances for 1AWG – 4/0AWG

• UL recognized components AWM 1339 per UL standard 758 for internal wiring of appliances for 250MCM – 500MCM

• UL recognized components AWM 1284 per UL standard 758 for internal wiring of appliances for 1AWG – 777MCM

• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.

• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
