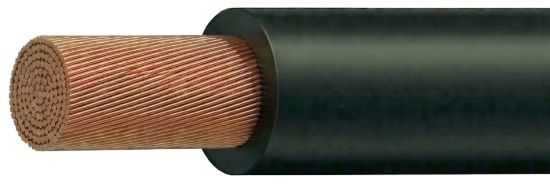

MTW61(K)-1283-XX*

Conductor

AWG Size & Stranding:

6 AWG 266 Strand Class K

Material:

Annealed Bare Copper

Conductor Count:

1 Conductor

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.060"

Color Code:

00: BLACK, -01: BROWN, -02: RED, -03: ORANGE, -04: YELLOW, -05: GREEN, -06: BLUE, -07: PURPLE, -08: GREY, -09: WHITE

Diameter:

0.314"

Weight:

113 Lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E207519 6AWG (UL) MTW 600V OR THW-2 90C DRY/WET SUN RES OR BOAT CABLE 105C DRY 75C WET BC-5W2 OIL RES I 600V VW-1 OR AWM 1283/1232/1346/1015 600V 105C OR AWM 1032 1000V 90C OR CSA 226471 TEW 105C 600V FT1 OR AWM I A/B 105C 600V FT1 “ROHS COMPLIANT” MADE IN USA

Approvals

Approvals List:

• UL listed as Type MTW per UL Standard 1063 for machine tool wire
• Meets requirements of UL Standard 83 for Type THW-2/VW-1
• UL approved for Sunlight and Oil Resistant I applications
• UL Approved for CT use applications for 1/0AWG and larger
• UL listed as Boat Cable per UL Standard 1426 for Electrical Cables
• CSA listed as Type AWM I A/B 105C 600V FT1 per CSA Standard 210-15
• CSA listed as TEW per CSA Standard C22.2 No. 127-18
• UL recognized components AWM 1015/1032 per UL standard 758 for internal wiring of appliances
• UL recognized components AWM 1283/1346 per UL standard 758 for internal wiring of appliances for 6AWG – 2AWG
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
