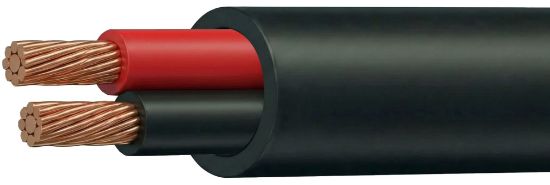

V42

Conductor

AWG Size & Stranding:

4 AWG 7 Strand Class B

Material:

Annealed Bare Copper

Conductor Count:

2 Conductors

Insulation

Material:

Polyvinylchloride & Nylon

Wall Thickness:

0.040" PVC/0.007" Nylon

Color Code:

Method 1, Table E-2

Assembly

Fillers:

Non-Hygroscopic Polypropylene - As required for a circular cross-section

Binder:

Clear Mylar – As required

Jacket

Material:

Polyvinylchloride

Wall Thickness:

0.060"

Diameter:

0.772"

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-40°C

Weight:

405 Lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 4AWG 2C (UL) TC*-ER**-JP** THWN-2/VW-1 600V 90C DRY/WET PVC JACKET SUN RES DIR BUR FT4 “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 336 for installation guidelines
• Cable is suitable for use in Class I Division 2 hazardous locations
• Individual conductors pass UL VW-1 flame test, rated THWN-2/VW-1
• *UL listed as Type TC per UL Standard 1277 for tray cables with 2 conductors
• **UL listed as Type TC-ER-JP per UL Standard 1277 for tray cables 3+ conductors
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & IEEE 1202 (FT4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• 10 AWG and smaller Meets ICEA S-73-532, where applicable
• 8 AWG and larger Meets ICEA S-95-658, where applicable
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
• Made in the USA
