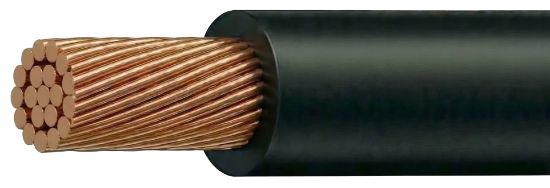

MTWN121(19)-00

Conductor

Conductor Count:

1

AWG Size:

12 AWG

Number of Strands:

19

Stranding Class:

Class C

Material:

Annealed Bare Copper

Insulation

Material:

Polyvinylchloride & Nylon

Wall Thickness:

0.015/0.005

Diameter:

0.1305

Color Code:

Black

Weight:

25

Markings

Footage Markers:

Yes

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E207519 12AWG (UL) MTW 600V OR THHN/THWN-2/VW-1 90C DRY/WET PR I GR I OR C(UL) AWM I A/B 600V 90C FT1 “ROHS COMPLIANT” MADE IN USA

Approvals

Approvals List:

• UL listed as Type MTW per UL Standard 1063 for machine tool wire and as Type THWN-2/THHN per UL Standard 83 for Thermoplastic-Insulated Wires

• UL approved for Oil and Gasoline resistance

• UL approved for CT use applications for 1/0AWG and larger

• Individual conductor meets UL VW-1 flame test

• 14AWG-2AWG C(UL) recognized for AWM I A/B per CSA Standard No. 210

• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.

• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
