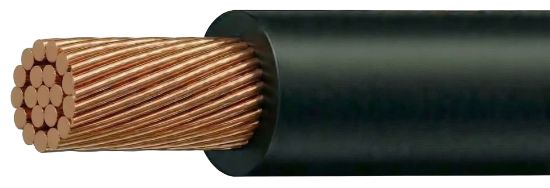

RHW-2/3/01-08

Conductor

Conductor Count:

1

AWG Size:

3/0 AWG

Number of Strands:

19

Stranding Class:

Class B

Material:

Annealed Bare Copper

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.080

Diameter:

0.620

Color Code:

GREY

Weight:

620

Jacket

Min. Static Bend Radius:

4.340

Markings

Footage Markers:

Yes

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E307410 3/0 AWG OR KCMIL (UL) USE-2 600V 90C DRY/WET OR RHW-2/VW-1 1000V 90C DRY/WET FOR CT USE PR II GR II "ROHS COMPLIANT" MADE IN USA

Approvals

Approvals List:

• UL listed as type USE-2 per UL Standard 854 for Service Entrance Cables and as Type RHW-2 per UL Standard 44 for Thermoset-Insulated Wires

• UL approved for Oil and Gasoline resistance

• UL approved for CT use applications for 1/0 and larger

• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.

• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
