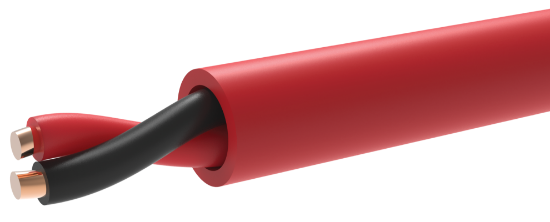

FF122LL5

Conductor

AWG & Stranding:

12 AWG Solid

Material:

Annealed Bare Copper

Conductor Count:

2 Conductor

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) articles 760 guidelines 7.2.Classified NYC Certified Fire Alarm LL39
• UL listed as FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• NFPA 130 Compliant
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (235) Updated June 14, 2023
• Operating Voltage: 300V RMS
• Made in the USA

Insulation

Material:

Plenum Rated Fluorinated Ethylene Propylene

Wall Thickness:

.015"

Color Code:

Black, Red

Assembly

Nominal Lay Length:

4.50” LHL (2.67 Tw/Ft)

Jacket

Material:

Plenum Rated Fluorinated Ethylene Propylene

Wall Thickness:

.025"

Color:

Red

Ripcord:

No

Nominal Diameter:

0.272” ± 0.025”

Weight:

71 lbs per mft

Markings

Type:

Printed Marker Tape

Legend:

LAKE CABLE P# FF122LL5 E171203 12AWG 2C 200C (UL) FPLP FT6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 “ROHS COMPLIANT” MADE IN USA

Footage Markers:

No

Standards

Maximum operating voltage:

300V

Operating Temperature Range:

-70C TO 200C
