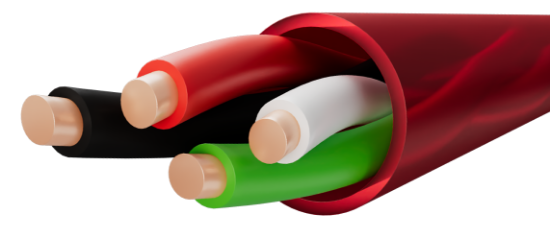

FF142PRLL5

14 AWG 2 Pair solid bare copper wire with plenum rated Fluorinated Ethylene Propylene insulation, unshielded and overall plenum rated Fluorinated Ethylene Propylene jacket for low-voltage electronic cable applications
SKU: FF142PRLL5

• Material Fluorinated Ethylene Propylene (FEP)
• Cable suitable for installation under NEC (NFPA 70) article 760 for guidelines
• UL listed as type FPLP 200°C per UL standard 1424
• Classified NYC Certified Fire Alarm LL5
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA
This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding14 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count2 Pair
Insulation
Wall Thickness0.015”
Color CodeBlack x Red, White x Green
Assembly
Pair/Cable Lay Length4.50” LHL (2.67 Tw/Ft)
ShieldN/A
Drain WireN/A
Jacket
MaterialFluorinated Ethylene Propylene (FEP)
Wall Thickness0.025”
Diameter0.358”
ColorTranslucent Red
RipcordNo
Weight98 Lbs/Mft
Markings
TypeCable permanently identified via marker tape under the jacket
LegendLAKE CABLE E171203 14AWG 2PR (UL) FPLP 200’C ALSO CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL5 “ROHS II” REACH MADE IN USA FT-6
Footage MarkersNo
Standards
Maximum operating voltage300V
