FF162LL5

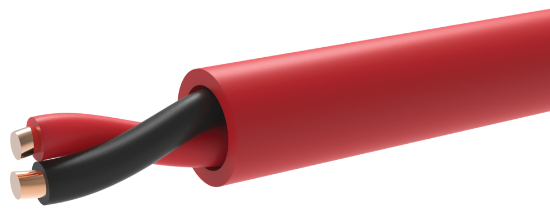

16 AWG 1Pair solid bare copper wire with plenum rated FEP insulation, unshielded and overall plenum rated FEP jacket for low-voltage electronic cable applications
SKU: FF162LL5


• Cable suitable for installation under NEC (NFPA 70) article 760 for guidelines
• Fluorinated ethylene propylene (FEP) is highly resistant to most chemicals including solvents, fuels, acids and alkaline substances. This includes temporary exposure as well as long term immersion at elevated temperature as high as 100’C.
• UL listed as type FPLP 200°C per UL standard 1424
• Classified NYC Certified Fire Alarm LL39
• All materials used in the manufacture of this cable are RoHS II and REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Standards
Maximum operating voltage300V
Jacket
MaterialPlenum Rated FEP
Thickness0.025”
Diameter0.213”
ColorRed
RipcordNo
Weight42 Lbs/Mft
Assembly
Nominal Lay Length4.50” LHL (2.66 Tw/Ft)
ShieldN/A
Drain WireN/A
Insulation
MaterialPlenum Rated FEP
Wall Thickness0.015”
Color CodeBlack, Red
Markings
TypeCable permanently identified via print on tape
LegendLAKE CABLE E171203 16AWG 2C (UL) FPLP 200’C ALSO CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 “ROHS II” REACH MADE IN USA FT-6
Footage MarkersNo
