FF162LL5S

16/2C SOLID BC OAS FPLP 200C

SKU: FF162LL5S

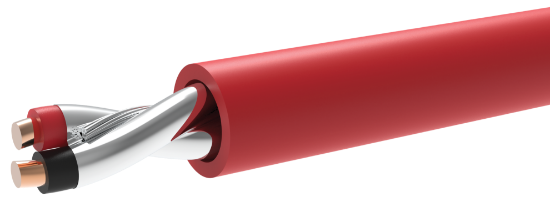

16 AWG 1 PAIR SOLID BARE COPPER WIRE WITH .015" FEP INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .025" RED FEP JACKET.

200'C (UL) FPLP FT-6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	16 AWG Solid
Material	Bare Copper Wire
Conductor Count	1 Pair
AWG & Stranding	16 Awg Solid
Insulation
Material	Fluorinated Ethylene Propylene
Wall Thickness	.015"
Color Code	Black, Red
Assembly
Nominal Lay Length	4.50”
Shield	Aluminum Mylar Tape Shield - 100% Coverage
Drain Wire	20 Awg 7 Strand Tinned Copper Wire
Jacket
Material	Fluorinated Ethylene Propylene
Thickness	0.025”
Diameter	0.215”
Color	Red
Ripcord	Yes
Weight	41 lbs per mft
Wall Thickness	.025"
Nominal Diameter	.215"
Markings
Type	Printed Marker Tape
Legend	LAKE CABLE E171203 16AWG 2C 200C (UL) FPLP FT6 CLASSIFED NYC CERT FIRE ALARM E-Z STRIP LL39 “ROHS COMPLIANT” MADE IN USA
Footage Markers	No
Standards
Maximum operating voltage	300V
Operating Temperature Range	-70C TO 200C

Copper Price 7/26/2024 4.1050
