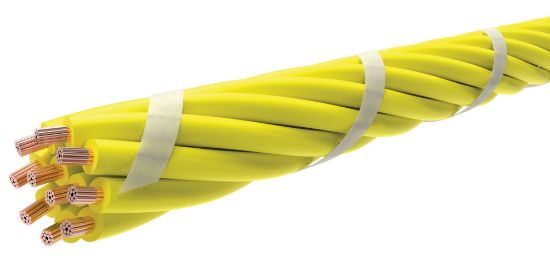

HW184-NJ

Conductor

AWG Size & Stranding:

18 Awg 16 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

4

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.020"

Color Code:

0.086"± 0.002"

Assembly

Nominal Lay Length:

1 thru 10 Yellow with Numerical Print, 11 thru 20 Orange with Numerical Print, 21 thru 30 Tan with Numerical Print, 31 thru 40 Blue with Numerical Print

Binder:

12-16X Core Diameter in LHL, Nominal

Standards

Operating Temperature Range:

Conductors permanently identified via surface inkjet print
