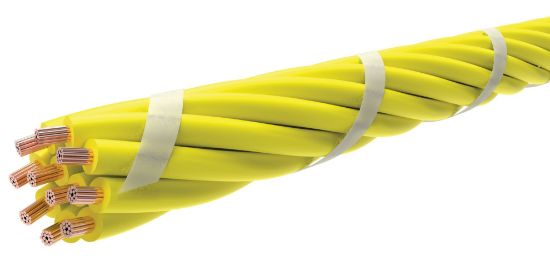

18AWG 42C PVC BUNDLE (UL) HOISTWAY 300V 60C
SKU: HW1842-NJ


18 AWG 42C 16 STRAND BARE COPPER WIRE WITH .020" PVC INSULATION, NON-SHIELDED, OVERALL HELICALLY APPLIED POLYESTER THREAD.

C(UL)US HOISTWAY CABLE 300V 60C FT1

CC: YELLOW WITH NUMERICAL PRINT 1-ONE THRU 10-TEN, ORANGE WITH NUMERICAL PRINT 11-ELEVEN THRU 20-TWENTY, TAN WITH NUMERICAL PRINT 21-TWENTY-ONE THRU 30-THIRTY, BLUE WITH NUMERICAL PRINT 31-THIRTY-ONE THRU 40-FORTY, RED WITH NUMERICAL PRINT 41-FORTY-ONE THRU 42-FORTY-TWO

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 Awg 16 Strands Class K
MaterialAnnealed Bare Copper
Conductor Count42
Insulation
MaterialPolyvinylchloride
Wall Thickness0.020"
Color Code1 thru 10 Yellow with Numerical Print, 11 thru 20 Orange with Numerical Print, 21 thru 30 Tan with Numerical Print, 31 thru 40 Blue with Numerical Print
Assembly
Nominal Lay Length12-16X Core Diameter in LHL, Nominal
BinderHelically Applied Polyster Thread
Markings
TypeConductors permanently identified via surface inkjet print
LegendLAKE CABLE E525775-01 18AWG C(UL)US HOISTWAY CABLE 300V 60C FT1
Standards
Operating Temperature Range-40C to 60C
Maximum operating voltage300V RMS
