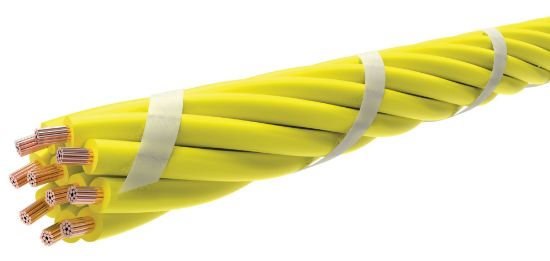

HWV1814-NJ

Conductor

AWG Size & Stranding:

18 Awg 16 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

14

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.030"

Color Code:

1 thru 10 Yellow with Numerical Print, 11 thru 20 Orange with Numerical Print, 21 thru 30 Tan with Numerical Print, 31 thru 40 Blue with Numerical Print

Assembly

Nominal Lay Length:

12-16X Core Diameter in LHL, Nominal

Binder:

Helically Applied Polyster Thread

Markings

Type:

Conductors permanently identified via surface inkjet print

Legend:

LAKE CABLE E525775-01 18AWG C(UL)US HOISTWAY CABLE 600V 60C FT1

Standards

Operating Temperature Range:

-40C to 60C

Maximum operating voltage:

600V RMS
