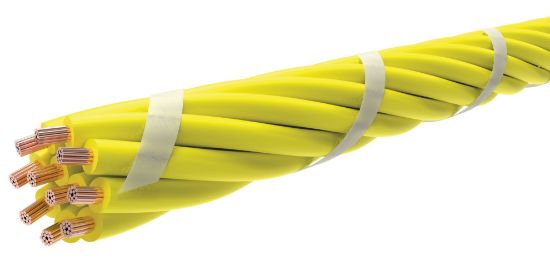

HWV184-X-NJ

Conductor

AWG Size & Stranding:

18 Awg 16 Strands Class K

Material:

Annealed Bare Copper

Conductor Count:

4

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.030"

Color Code:

Yellow #1, Orange #2, Blue #3, Red #4

Assembly

Nominal Lay Length:

12-16X Core Diameter in LHL, Nominal

Binder:

Helically Applied Polyster Thread

Markings

Type:

Conductors permanently identified via surface inkjet print

Legend:

LAKE CABLE E525775-01 18AWG C(UL)US HOISTWAY CABLE 600V 60C FT1

Standards

Operating Temperature Range:

-40C to 60C

Maximum operating voltage:

600V RMS
