Found 9 products.
Sort by
Display per page
16 AWG 3C 7STR BC OAS PVC/PVC (UL) ITC/PLTC/CL3 300V 105C
18/1PR 7STR BC OAS ITC/PLTC/CL3 SR 105C BLACK
18/1 TRIAD 7STR BC OAS ITC/PLTC/CL3 105C BLACK
22/2C 7STR BC OAS ITC/PLTC/CL3 SR 105C BLACK
22/3C 7STR BC OAS ITC/PLTC/CL3 SR 105C BLACK
14 AWG 2C 7STR BC OAS PVC-PVC (UL) ITC/PLTC/CL3 300V 105C
14 AWG 3C 7STR BC OAS PVC/PVC (UL) ITC/PLTC/CL3 105C 300V
20/2C 7STR BC OAS ITC/PLTC/CL3 SR 105C BLACK
20/3C 7STR BC OAS ITC/PLTC/CL3 SR 105C BLACK
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|
| T163S | 16 AWG 7 Strands Class B | 3 Conductors | 0.035” | 0.266” | 57 Lbs/Mft |

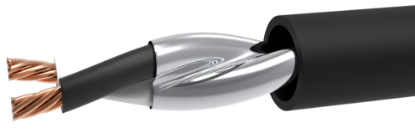

| T182S | 18 AWG 7 Strands Class B | 2 Conductors | 0.035” | 0.207” | 26 Lbs/Mft |
| T183S | 18 AWG 7 Strands Class B | 3 Conductors | 0.035” | 0.248” | 42 Lbs/Mft |
| T222S | 22 AWG 7 Strands Class B | 2 Conductors | 0.035” | 0.193” | 21 Lbs/Mft |
| T223S | 22 AWG 7 Strands Class B | 3 Conductors | 0.035” | 0.203” | 26 Lbs/Mft |
| T142S | 14 AWG 7 Strands Class B | 2 Conductors | 0.040” | 0.308” | 67 Lbs/Mft |
| T143S | 14 AWG 7 Strands Class B | 3 Conductors | 0.040” | 0.329” ± 0.030” | 86 Lbs/Mft |
| T202S | 20 AWG 7 Strands Class B | 2 Conductors | 0.035” | 0.207” | 26 Lbs/Mft |
| T203S | 20 AWG 7 Strands Class B | 3 Conductors | 0.035” | 0.209” | 30 Lbs/Mft |
