12AWG 2PR 7STR BC OAS VNTC (UL) TC-ER 600V 90C
14AWG 2PR 7STR BC OAS PVC/N PVC (UL) TC-ER 600V 90C
16AWG 2C 7STR BC OAS VNTC (UL) TC 600V 90C
16AWG 3C 7STR BC OAS VNTC (UL) TC-ER 600V 90C
18AWG 2C 7STR BC OAS VNTC (UL) TC 600V 90C
18GA 3C 7STR BC OAS VNTC (UL) TC-ER 600V 90C
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|
| V122PRS | 12 AWG, 7 Strands Class B | 2 Pairs | 0.060” | 0.567” | 187 lbs./Mft. |
| V142PRS | 14 AWG, 7 Strands Class B | 2 Pairs | 0.045” | 0.463” | 122 lbs./Mft. |

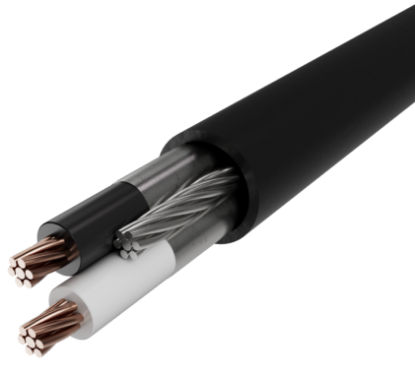

| V162S | 16 AWG, 7 Strands Class B | 2 Conductors | 0.045” | 0.293” | 50 lbs./Mft. |

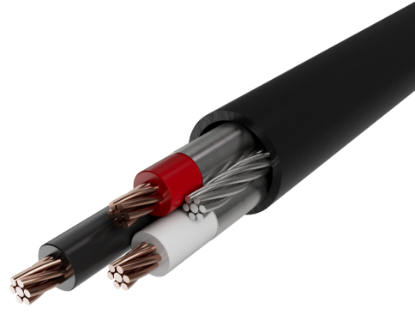

| V163S | 16 AWG, 7 Strands Class B | 3 Conductors | 0.045” | 0.303” | 64 lbs./Mft. |
| V182S | 18 AWG, 7 Strands Class B | 2 Conductors | 0.045” | 0.263” | 41 lbs./Mft. |
| V183S | 18 AWG, 7 Strands Class B | 3 Conductors | 0.045” | 0.273” | 49 lbs./Mft. |
