L121PRS

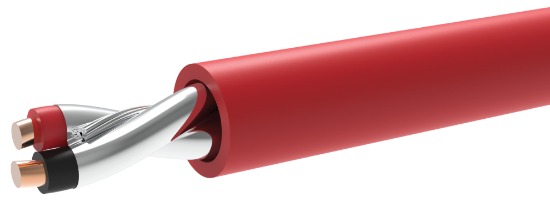

12 AWG 1 Pair solid bare copper wire with plenum rated PVDF insulation, shielded and overall plenum rated PVDF jacket for low-voltage electronic cable applications
SKU: L121PRS


• Classified NYC Certified Fire Alarm LL39
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA
• UL listed as type FPLP 150°C per UL standard 1424
• Cable suitable for installation under NEC (NFPA 70) article 760 for guidelines

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding12 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count1 Pair
Insulation
MaterialPlenum Rated Polyvinylidene Fluoride
Wall Thickness.015”
Color CodeBlack, Red
Assembly
Nominal Lay Length4.50” LHL (2.66 Tw/Ft)
ShieldAluminum Mylar- 100% Coverage
Drain Wire20 AWG Solid Tinned
Jacket
MaterialPlenum Rated Foamed Polyvinylidene Fluoride
Wall Thickness0.025”
Diameter0.274”
ColorRed
RipcordNo
Weight67 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 12AWG 2C (UL) FPLP 150’C ALSO CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 “ROHS II” REACH MADE IN USA FT-6
Footage MarkersYes
Standards
Maximum operating voltage300V
Cold Temperature-40’c
