Copper Price 12/5/2024 4.1320
14AWG 1PR SOLID BC NS FPLP RED FPLP 150C LL39 NYC
SKU: L141PR

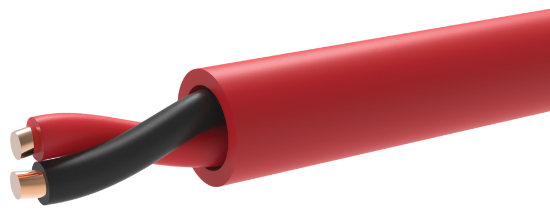

14 AWG 1 PAIR SOLID BARE COPPER WIRE WITH .015" PVDF INSULATION, NON-SHIELDED, OVERALL .025" PVDF FEP JACKET.

150'C (UL) FPLP FT-6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Electricals
Impedance45 Ω +/-10%
Capacitance60 pF/ft. +/-10%
DC Resistance2.5 Ω/Mft. @ 20°C
Conductor
AWG Size & Stranding14 AWG Solid
MaterialBare Copper Wire
Conductor Count1 Pair
AWG & Stranding14 Awg Solid
Insulation
MaterialPolyvinylidene Fluoride
Wall Thickness.015"
Color CodeBlack, Red
Assembly
Nominal Lay Length3.75”
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylidene Fluoride
Wall Thickness.025"
Diameter0.238”
ColorRed
RipcordNo
Weight46 lbs per mft
Nominal Diameter.238"
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE P# L141PR E171203 14AWG 1PR 150C (UL) FPLP FT6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
Cold Temperature-40’c
Operating Temperature Range-40C TO 150C

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
