Picture of L142PR

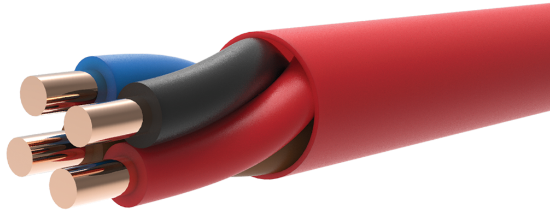

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

L142PR

Not what you were looking for?
14AWG 2PR SOLID BC NS FPLP RED FPLP 150C LL39 NYC
SKU: L142PR


14 AWG 2 PAIR SOLID BARE COPPER WIRE WITH .015" PVDF INSULATION, NON-SHIELDED, OVERALL .025" PVDF RED JACKET.

150'C (UL) FPLP FT-6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED, WHITE & GREEN

RIPCORD: NO

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding14 AWG Solid
MaterialBare Copper Wire
Conductor Count2 Pair
AWG & Stranding14 Awg Solid
Insulation
MaterialPolyvinylidene Fluoride
Wall Thickness.015"
Color CodeBlack & Red, White & Green
Assembly
Pair Lay Length4.50” LHL (2.66 Tw/Ft)
Cable Lay Length5.00”LHL ( 2.4Tw/Ft)
ShieldN/A
Drain WireN/A
Nominal Lay Length5.00”
Jacket
MaterialPolyvinylidene Fluoride
Wall Thickness.025"
Diameter0.342”
ColorRed
RipcordNo
Weight86 lbs per mft
Nominal Diameter.342"
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE P# L142PR E171203 14AWG 2PR 150C (UL) FPLP FT6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
Operating Temperature Range-40C TO 150C
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 760 guidelines
• Classified NYC Certified Fire Alarm LL39 and UL listed as FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 Updated January 15, 2019
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
