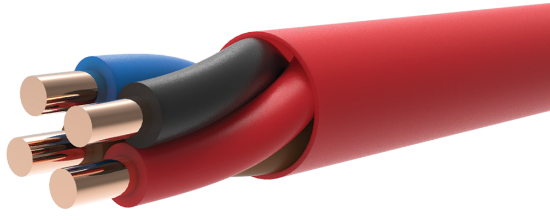

16AWG 2PR SOLID BC UNS FPLP RED FPLP 150C LL39 NYC
SKU: L162PR


16 AWG 2 PAIR SOLID BARE COPPER WIRE WITH .015" PVDF INSULATION, NON-SHIELDED, OVERALL .025" RED PVDF JACKET.

150'C (UL) FPLP FT-6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED, WHITE & GREEN

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Electrical Characteristics
Impedance52 Ω +/-10%
Capacitance53.0 pF/ft +/-10%
DC Resistance4.16 Ω/Mft. @ 20°C
Conductor
AWG Size & Stranding16 AWG Solid
MaterialBare Copper Wire
Conductor Count2 Pair
AWG & Stranding16 Awg Solid
Insulation
MaterialPolyvinylidene Fluoride
Wall Thickness.015"
Color CodeBlack & Red, White & Green
Assembly
Nominal Lay Length5.00”
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylidene Fluoride
Wall Thickness.025"
Diameter0.312”
ColorRed
RipcordNo
Weight60 lbs per mft
Nominal Diameter.290"
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171203 16AWG 2PR 150°C (UL) FPLP FT6 ALSO CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
Operating Temperature Range-40C TO 150C
