Picture of L181PRS
Picture of L181PRS
Picture of L181PRS

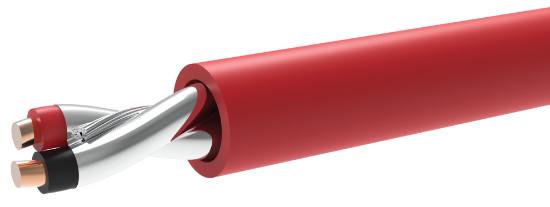

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

L181PRS

Not what you were looking for?
18AWG 1PR SOLID BC OAS FPLP RED FPLP 150C LL39 NYC
SKU: L181PRS


18 AWG 1 PAIR SOLID BARE COPPER WIRE WITH .015" PVDF INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG SOLID TINNED COPPER DRAIN WIRE, OVERALL .025" PVDF RED JACKET.

150'C (UL) FPLP FT-6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: NO

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG Solid
MaterialBare Copper Wire
Conductor Count1 Pair
AWG & Stranding18 Awg Solid
Insulation
MaterialPolyvinylidene Fluoride
Wall Thickness.015"
Color CodeBlack, Red
Assembly
Nominal Lay Length4.50”
ShieldAluminum Mylar Tape Shield - 100% Coverage
Drain Wire20 Awg 7 Strand Tinned Copper Wire
Jacket
MaterialPolyvinylidene Fluoride
Wall Thickness.025"
Diameter0.194”
ColorRed
RipcordNo
Weight28 lbs per mft
Nominal Diameter.193"
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE P# L181PRS E171203 18AWG 1PR 150C (UL) FPLP FT6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
Operating Temperature Range-40C TO 150C
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 760 guidelines
• Classified NYC Certified Fire Alarm LL39 and UL listed as FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 Updated January 15, 2019
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
