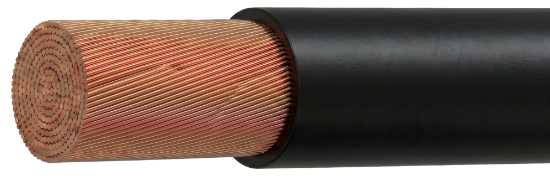

XHHW-2/101T-00

Conductor

AWG Size & Stranding:

10 AWG

Material:

Annealed Tinned Copper

Conductor Count:

1

Number of Strands:

105

Stranding Class:

Class K

Insulation

Material:

Cross-Linked Polyethylene

Wall Thickness:

0.030"

Color Code:

Black

Diameter:

0.178"

Weight:

43 Lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E214472 10AWG (UL) XHHW-2/VW-1 1000V 90C DRY/WET PR II GR II "ROHS COMPLIANT" MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• UL listed as type XHHW-2 per UL Standard 44 for Thermoset-Insulated Wires
• Individual conductor passes UL VW-1 flame test, rated XHHW-2/VW-1
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
