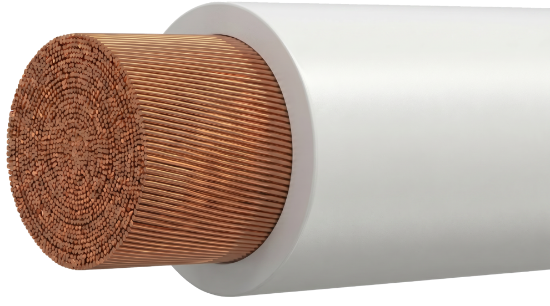

XHHW-2/500MCM1(K)-09

Conductor

AWG Size:

500 MCM

Material:

Annealed Bare Copper

Number of Strands:

5054

Stranding Class:

Class K

Conductor Count:

1

Insulation

Material:

Cross-Linked Polyethylene

Wall Thickness:

0.065"

Color Code:

White

Diameter:

1.050"

Weight:

1760 Lbs./Mft.

Min. Static Bend Radius:

4.200”

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E214472 500 KCMIL (UL) XHHW-2 1000V 90C DRY/WET FOR CT USE PR II GR II “ROHS COMPLIANT” MADE IN USA VW-1

Footage Markers:

Yes

Approvals

Approvals List:

• UL listed as type XHHW-2 per UL Standard 44 for Thermoset-Insulated Wire
• UL approved for Oil and Gasoline resistance
• UL approved for CT use applications
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit:www.P65Warnings.ca.gov
