LAKE CABLE CLASSIC

APPLICATION: Lake Cable Classic products are engineered and designed for analog data signals in enclosures, from controllers to devices, relays, contacts, temp/pressure meters and alarms. These cables are also suitable for control, instrumentation, sound/audio, communications, data transmission and meet or exceed UL standards.

  • Control & Instrumentation
  • Fire Alarm/Security
  • Power Supply
  • Audio
  • Computer/P.O.S.
  • RS-232, RS-422/423 and
    RS-485 - Computer & CAD/CAM

Description: Available in various conductor configurations, gauge sizes and pair counts. Lake Cable offers both plenum and riser-rated options, meeting all compliance with building codes and regulations. These cables are available unshielded or shielded. All cables are proudly made in the USA and are available in 24 AWG – 12 AWG constructions. Download our sales sheet for all construction and engineering options. Or see our cross-reference guide to see which Lake Cable Classic product will work for you!

FEATURES: Lake Cable Classic products feature low minimum order quantities, quick quote turnaround times and the shortest delivery times in the industry. Custom put up and packaging available.

View as Grid List
Sort by
Display per page

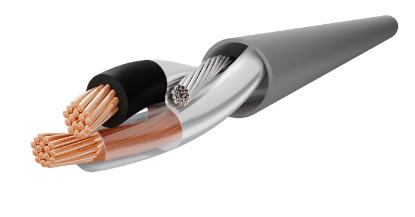

142CSP

14 AWG 2 conductor 19 strand tinned copper wire with PE insulation, shielded and overall PVC jacket for low-voltage electronic cable applications.

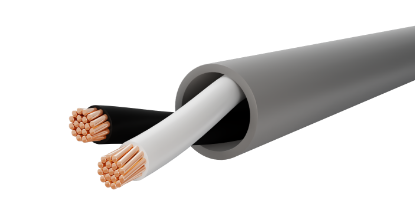

162CPT19

16 AWG 2 conductor 19 strand tinned copper wire, SRPVC insulation, unshielded with an overall PVC jacket. (UL) CMG or AWM 2598.

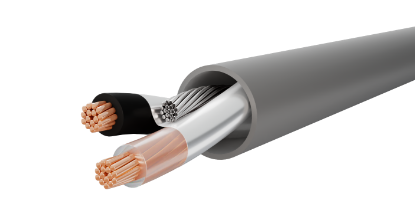

162CSTP19

16 AWG 2 conductors 19 strands tinned copper wire with PE insulation, an aluminum/mylar shield, a stranded tinned copper drain and overall PVC jacket

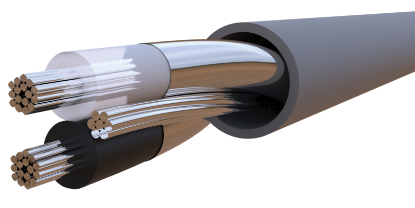

182CSTP-BLD

18 AWG 2 conductor 16 strands tinned copper wire, polyethylene insulation, shielded, with an overall PVC jacket

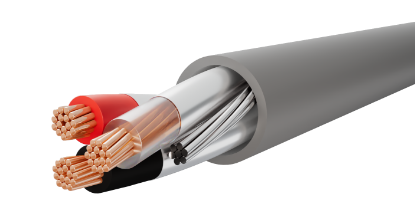

183CSP

18 AWG 3 conductor 16 strands tinned copper wire, polyethylene insulation, shielded, with an overall PVC jacket

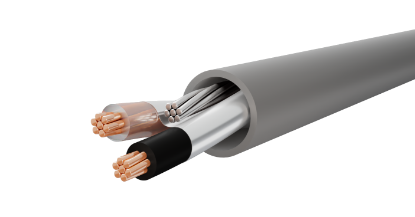

202CSP

20 AWG 2 conductor 7 strands tinned copper wire, polyethylene insulation, shielded, with an overall PVC jacket
