Found 26 products.
Sort by
Display per page

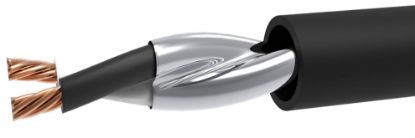

16 AWG 2C 7STR TC OAS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 3C 7STR TC OAS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C

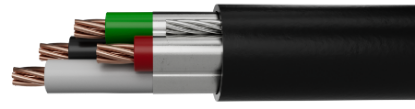

16 AWG 4C 7STR TC OAS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 5C 7STR TC OAS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 7C 7STR TC OAS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 12C 7STR TC OAS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 19C 7STR TC OAS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 25C 7STR TC OAS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 37C 7STR TC OAS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 2PR 7STR TC SPOS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 4PR 7STR TC SPOS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
16 AWG 8PR 7STR TC SPOS XLPE/LSZH (UL) ITC-ST1/PLTC-ST1 300V 105C
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|
| TXH162ST | 16 AWG 7 Strands Class B | 2 Conductors | 0.035" | 0.249" | 45 lbs/Mft |
| TXH163ST | 16 AWG 7 Strands Class B | 3 Conductors | 0.035" | 0.262" | 58 lbs./Mft. |
| TXH164ST | 16 AWG 7 Strands Class B | 4 Conductors | 0.040" | 0.294" | 72 lbs./Mft. |
| TXH165ST | 16 AWG 7 Strands Class B | 5 Conductors | 0.040" | 0.320" | 85 lbs./Mft. |
| TXH167ST | 16 AWG 7 Strands Class B | 7 Conductors | 0.040" | 0.345" | 110 lbs./Mft. |
| TXH1612ST | 16 AWG 7 Strands Class B | 12 Conductors | 0.050" | 0.465" | 185 lbs./Mft. |
| TXH1619ST | 16 AWG 7 Strands Class B | 19 Conductors | 0.050" | 0.539" | 273 lbs./Mft. |
| TXH1625ST | 16 AWG 7 Strands Class B | 25 Conductors | 0.060" | 0.623" | 361 lbs./Mft. |
| TXH1637ST | 16 AWG 7 Strands Class B | 37 Conductors | 0.060" | 0.736" | 515 lbs./Mft. |
| TXH162SPOST | 16 AWG 7 Strands Class B | - | 0.050" | 0.430" | 110 lbs./Mft. |
| TXH164SPOST | 16 AWG 7 Strands Class B | - | 0.050" | 0.475" | 172 lbs./Mft. |
| TXH168SPOST | 16 AWG 7 Strands Class B | - | 0.060" | 0.632" | 317 lbs./Mft. |
