MCT182SPOS

18AWG 2PR 7STR BC SPOS PVC/PVC AIA (UL) ITC/PLTC/CL3 300V 105C

SKU: MCT182SPOS

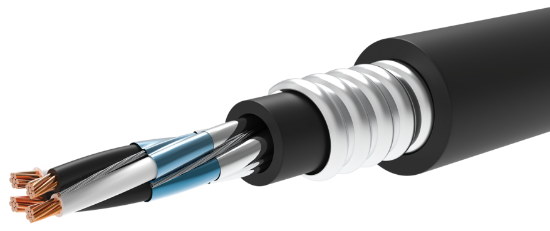

18 AWG 2 PAIR 7 STRAND BARE COPPER WIRE WITH .016" PVC INSULATION, EACH PAIR HAS A CLEAR MYLAR WRAP TAPE AND IS INDIVIDUALLY SHIELDED WITH FOIL-FREE EDGED ALUMINUM MYLAR TAPE SHIELDS WITH 20 AWG 7 STRAND TINNED COPPER DRAIN WIRES, OVERALL CLEAR MYLAR WRAP TAPE & ALUMINUM MYLAR TAPE SHIELD WITH AN 18 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .040" BLACK PVC JACKET, OVERALL ALUMINUM INTERLOCKED ARMOR OVERALL .050" BLACK PVC JACKET.
(UL) CL3 OR ITC OR PLTC 105'C
SUN RES DIR BUR "ROHS"
CC: BLACK & WHITE NUMBERED PAIRS

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Interlocked Armor
Material	Interlocked Aluminum
Diameter	0.600”
Inner Jacket
Material	Polyvinylchloride
Wall Thickness	0.040”
Diameter	0.350”
Color	Black
Ripcord	No
Outer Jacket
Material	Polyvinylchloride
Wall Thickness	0.040”
Diameter	0.680”
Color	Black
Ripcord	Yes
Cold Bend Rating	-40°C
Weight	197 Lbs/Mft
Conductor
AWG Size & Stranding	18 AWG 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	2 Pairs
Insulation
Material	Polyvinylchloride
Wall Thickness	0.016”
Color Code	Black x White numbered
Assembly
Pair Lay Length	3.00” LHL (4.00 Tw/Ft)
Pairs Drain Wire	20 AWG 7 Strand Tinned Copper
Pairs Binder	Clear Mylar Tape
Pairs Shield	Foil Free Edge Aluminum/Mylar
Cable Lay Length	4.00” LHL (3.00 Tw/Ft)
Cable Binder	Clear Mylar Tape
Cable Shield	Aluminum Mylar Tape – 100% Coverage
Cable Drain Wire	18 AWG 7 Strand Tinned Copper
Markings
Type	Cable permanently identified via surface inkjet print
Legend	LAKE CABLE E171202 18AWG 2PR SPOS (UL) PLTC OR (UL) ITC OR (UL) CL3 105’C SUN RES DIR BUR FT-4 “ROHS”
Footage Markers	Yes
Standards
Recommended Operating Voltage	300V
Approvals
Approvals List	• UL listed as type PLTC & CL3 per UL standard 13 and as type ITC per UL standard 2250 • Cable is suitable for use in Class I Division II hazardous locations • Cable is UL approved for Sunlight Resistant & Direct Burial Applications. • All materials used in the manufacture of this cable are RoHS compliant • Made in the USA
