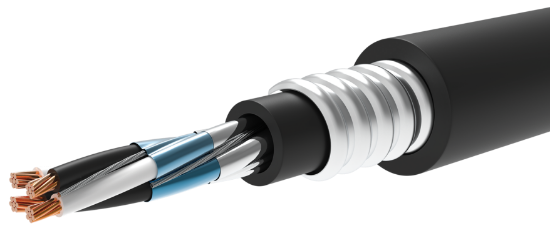

22 AWG 2 pairs 7 strand bare copper conductors, PVC insulation, individually and overall shielded, with a PVC jacket, aluminum interlocked armor and an overall PVC jacket. (UL) ITC or PLTC 105’C.
SKU: MCT222SPOS


• UL listed as type PLTC & CL3 per UL standard 13 and as type ITC per UL standard 2250
• Cable is suitable for use in Class I Division II hazardous locations
• Cable is UL approved for Sunlight Resistant Applications.
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Interlocked Armor
MaterialInterlocked Aluminum
Diameter0.578”
Inner Jacket
MaterialPolyvinylchloride
Wall Thickness0.040”
Diameter0.328”
ColorBlack
RipcordNo
Outer Jacket
MaterialPolyvinylchloride
Wall Thickness0.040”
Diameter0.658”
ColorBlack
RipcordYes
Cold Bend Rating-40°C
Weight171 Lbs/Mft
Conductor
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count2 Pairs
Insulation
MaterialPolyvinylchloride
Wall Thickness0.021”
Color CodeBlack x White numbered
Assembly
Pair Lay Length2.25” LHL (5.33 Tw/Ft)
Pairs Drain Wire24 AWG 7 Strand Tinned Copper
Pairs BinderClear Mylar Tape
Pairs ShieldFoil Free Edge Aluminum/Mylar
Cable Lay Length3.75” LHL (3.20 Tw/Ft)
Cable BinderClear Mylar Tape
Cable ShieldAluminum Mylar Tape – 100% Coverage
Cable Drain Wire22 AWG 7 Strand Tinned Copper
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 22AWG 2PR SPOS (UL) PLTC OR (UL) ITC OR (UL) CL3 105’C SUN RES FT-4 “ROHS”
Footage MarkersYes
Standards
Recommended Operating Voltage300V
