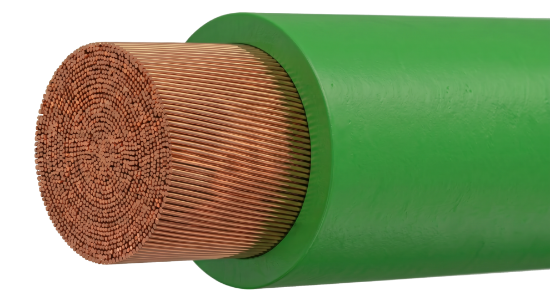

MTW350MCM1(K)-1284-05

Conductor

Conductor Count:

1

AWG Size:

350 MCM

Number of Strands:

3478

Stranding Class:

Class K

Material:

Annealed Bare Copper

Insulation

Material:

Polyvinylchloride

Wall Thickness:

0.095"

Diameter:

0.913"

Color Code:

Green

Weight:

1224 Lbs./Mft.

Min. Static Bend Radius:

3.652”

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E207519 350KCMIL (UL) MTW 600V OR THW-2/VW-1 90C DRY/WET CT SUN RES PR I OR AWM 1284/1015 600V 105V OR AWM 1339 600V 90C OR AWM 1032 1000V 90C OR CSA 226471 AWM I A/B 105C 600V FT1 “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• UL listed as Type MTW per UL Standard 1063 for machine tool wire
• Meets requirements of UL Standard 83 for Type THW-2/VW-1
• UL approved for Sunlight and Oil Resistant I applications
• UL Approved for CT use applications for 1/0AWG and larger
• UL listed as Boat Cable per UL Standard 1426 for Electrical Cables
• CSA listed as Type AWM I A/B 105C 600V FT1 per CSA Standard 210-15
• CSA listed as TEW per CSA Standard C22.2 No. 127-18
• UL recognized components AWM 1015/1032 per UL standard 758 for internal wiring of appliances
• UL recognized components AWM 1339 per UL standard 758 for internal wiring of appliances
• UL recognized components AWM 1284 per UL standard 758 for internal wiring of appliances
• Due to the frequent updates to regulations, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
• WARNING: This product may contain chemicals that pose a risk of cancer from exposure to Vinyl Chloride and reproductive harm from exposure to Di-isodecyl Phthalate (DIDP). Visit: www.P65Warnings.ca.gov
