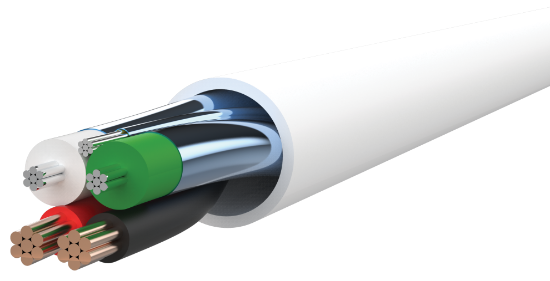

OSDP2ELEM-09

Elements

Element 1:

22 AWG 1 Pair RS485

Conductor
AWG Size & Stranding: 22 AWG 7 Strands
Material: Annealed Tinned Copper
Conductor Count: 1 Pair

RS485 Insulation
Material: Foam FEP
Wall Thickness: 0.025”
Conductor Diameter: 0.0783” ± .002”
Color code: Green, White

RS485 Assembly
Lay Length: 2.50” LHL (4.80 Tw/Ft), Nominal
Overall Shield: Aluminum/Mylar Tape – 100% Coverage
Overall Drain Wire: 24 AWG 7 strand Tinned Copper

Element 2:

18 AWG 2 Conductor

Conductor
AWG Size & Stranding: 22 AWG 7 Strands
Material: Annealed Tinned Copper
Conductor Count: 1 Pair

RS485 Insulation
Material: Foam FEP
Wall Thickness: 0.025”
Conductor Diameter: 0.0783” ± .002”
Color code: Green, White

RS485 Assembly
Lay Length: 2.50” LHL (4.80 Tw/Ft), Nominal
Overall Shield: Aluminum/Mylar Tape – 100% Coverage
Overall Drain Wire: 24 AWG 7 strand Tinned Copper

Overall Assembly

Cable Lay Length:

5.50” LHL (2.18 Tw/Ft)

Jacket - Overall Cable

Material:

Plenum Polyvinylchloride

Wall Thickness:

0.023”

Diameter:

0.253” ± 0.024”

Color:

White

Ripcord:

Yes

Weight:

38 Lbs/Mft

Markings - Overall Cable

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE RS485 120OHM OSDP ZONE A B C D E 0 1 2 3 4 5 6 7 8 9 E171197 18AWG 2C + 22AWG 1PR RS485 C(UL)US CMP 75C FT6 "ROHS COMPLIANT" MADE IN USA

Footage Markers:

Yes (Ascending/Descending)

Nominal Electrical Characteristics

Impedance:

120 Ω ± 10%

Capacitance:

10 pF/ft. ± 10%

DC Resistance:

17.04

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (240) Updated January 23, 2024
• Operating Voltage: 300V RMS
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
