OSDPCOMBO1-04

22/1P+18/2C + 18/4C + 22/4C + 22/2C PVC/PVC YELLOW

SKU: OSDPCOMBO1-04

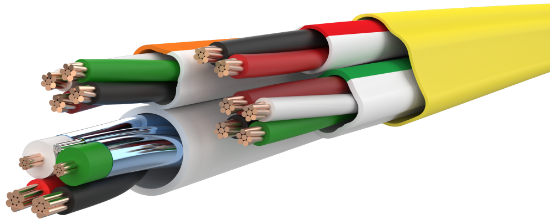

A 4 ELEMENT 14C PLENUM RATED COMPOSITE CABLE

ELEMENT 1: 22 AWG 1 PAIR 7 STRAND TINNED COPPER WIRE WITH .025" FOAM FEP INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE + 18 AWG 2C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .013" WHITE SGPVC JACKET.
CC: 22/1PR - GREEN, WHITE
CC: 18/2C - BLACK, RED
PRINT: OSDP CARD READER A B C D E 0 1 2 3 4 5 6 7 8 9

ELEMENT 2: 18 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .013" WHITE WITH A CO-EXTRUDED ORANGE STRIPE SGPVC JACKET.
CC: BLACK, RED, WHITE, GREEN
PRINT: LOCK POWER A B C D E 0 1 2 3 4 5 6 7 8 9

ELEMENT 3: 22 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .013" WHITE WITH A CO-EXTRUDED RED STRIPE SGPVC JACKET.
CC: BLACK, RED, WHITE, GREEN
PRINT: REX/SPARE A B C D E 0 1 2 3 4 5 6 7 8 9

ELEMENT 4: 22 AWG 2C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .013" WHITE WITH A CO-EXTRUDED GREEN STRIPE SGPVC JACKET.
CC: BLACK, RED
PRINT: DOOR CONTACT A B C D E 0 1 2 3 4 5 6 7 8 9

THE FOUR INDIVIDUALLY JACKETED ELEMENTS ARE CABLED WITH AN OVERALL .018" YELLOW SGPVC JACKET.(UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA
PRINT: LAKE CABLE OSDPCOMOBO1 ACCESS CONTROL CABLE
RIPCORD: YES ON ALL ELEMENTS AND OVERAL
FOOTAGE MARKERS: OVERALL CABLE ONLY

INNER JACKETED ELEMENTS PRINTED WITH (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Elements
Element 1	Element 1: 22 AWG 2C Foam FEP Shielded + 18 AWG 2C Unshielded Conductor: A AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Tinned Copper Conductor Count: 1 PR Insulation Material: Foam FEP Wall Thickness: 0.025” Diameter: 0.078” + 0.002” Color Code: Green, White Assembly Pair Lay Length: Cabled As Common Axis Cable Shield: Aluminum/Mylar Tape 100% Coverage Cable Drain Wire: 24AWG 7 Strands Tinned Copper Nominal Electrical Characteristics Impedance: 120 Ω Capacitance: 11 F/ft DC Resistance: 16.5 Ω/Mft @ 20°C Maximum Conductor: B AWG Size & Stranding: 18 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 2 Conductors Insulation Material: PVC Wall Thickness: 0.007” Diameter: 0.059” + 0.002” Color Code: Black, Red Overall Assembly Conductors A, B Assembly Nominal Lay Length: 5.00” LHL (2.04 Tw/Ft Jacket Material: Plenum Rated PVC Wall thickness: 0.013” Diameter: 0.202” + 0.015” Color: White Ripcord: Yes Weight: 30 lbs./Mft. Markings* Type: Cable shall be permanently identified via surface inkjet print Legend: OSDP CARD READER A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 18 AWG 2C + 22 AWG 1PR SHIELDED RS485 75C (UL) CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA Footage Markers: No
Element 2	Element 2: 18 AWG 4C Unshielded Conductor AWG Size & Stranding: 18 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 4 Conductors Insulation Material: PVC Wall Thickness: 0.007” Diameter: 0.059” + 0.002” Color code: Black, Red, White, Green Assembly Cable Lay Length: 3.00” LHL (4.00 Tw/Ft) Jacket Material: Plenum Rated PVC Wall thickness: 0.013” Diameter: 0.168” + 0.015” Color: White/Orange Ripcord: Yes Weight: 29 lbs./Mft. Markings* Type: Cable shall be permanently identified via surface inkjet print Legend: LOCK POWER A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 18 AWG 4C 75C (UL) CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA Footage Markers: No
Element 3	Element 3: 2 AWG 4 Conductors Unshielded Conductor AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 4 Conductors Insulation Material: PVC Wall Thickness: 0.007” Diameter: 0.042” + 0.002” Color code: Black, Red, White, Green Assembly Nominal Lay Length: 3.00” LHL (4.00 Tw/Ft) Jacket Material: Plenum Rated PVC Wall thickness: 0.013” Diameter: 0.127” + 0.010” Color: White/Red Ripcord: Yes Weight: 14 lbs./Mft. Markings* Type: Cable shall be permanently identified via surface inkjet print Legend: REX/SPARE A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 22 AWG 4C 75C (UL) CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA Footage Markers: No
Element 4	Element 4: 22 AWG 2 Conductors Unshielded Conductor AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 2 Conductors Insulation Material: Plenum Rated PVC Wall Thickness: 0.007” Diameter: 0.042” + 0.002” Color code: Black, Red Assembly Nominal Lay Length: 2.50” LHL (4.08 Tw/Ft) Jacket Material: Plenum Rated PVC Wall thickness: 0.013” Diameter: 0.110” + 0.010” Color: White/Green Ripcord: Yes Weight: 8 lbs./Mft. Markings* Type: Cable shall be permanently identified via surface inkjet print Legend: DOOR CONTACT A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 22 AWG 2C 75C (UL)CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA Footage Markers: No
Overall Assembly
Nominal Lay Length (All Elements)	8.00” LHL (1.00 Tw/Ft)
Assembly – Elements 1 & 2 - Overall Cable Assembly for Element 1 & 2
Cable Lay Length	5.00” LHL (2.04 Tw/Ft
Jacket – Overall Cable Assembly for Element 1 & 2
Material	Plenum Rated Polyvinylchloride
Wall Thickness	0.013”
Diameter	0.202” + 0.015”
Color	White
Ripcord	Yes
Weight	30 lbs./Mft.
Markings – Overall Cable Assembly for Element 1 & 2
Type	Cable shall be permanently identified via surface inkjet print
Footage Markers	OSDP CARD READER A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 18 AWG 2C + 22 AWG 1PR SHIELDED RS485 75C (UL) CL3P OR C(UL)US CMP Ft6 “ROHS COMPLIANT” MADE IN USA, No
Jacket - Overall Cable
Diameter	0.440” ± 0.035”
Color	Yellow
Material	Plenum Rated PVC
Wall Thickness	0.018”
Ripcord	Yes
Weight	100 lbs./Mft.
Markings - Overall Cable
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE OSDPCOMOBO1 ACCESS CONTROL CABLE E171202 18 AWG 2C + 22 AWG 1PR SHIELD + 18 AWG 4C +22 AWG 4C + 22 AWG 2C 75C (UL) CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA
Footage Markers	Yes (Ascending/Descending)
Approvals
Approvals List	• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines • Cable suitable for installation in Canada under Section 60 of CEC, Part I • C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17 • UL listed as CL3P per UL standard 13 • Cable meets NFPA 262 (Steiner tunnel) flame test • Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive • Operating Voltage: 300V RMS • Made in the USA • WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
