P122F

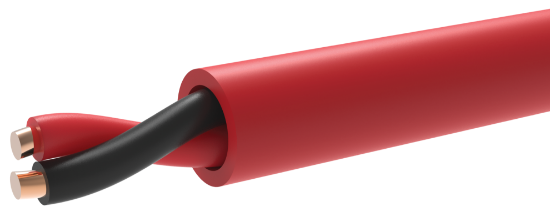

12 AWG 2 conductor solid bare copper wire with plenum rated PVC insulation, unshielded and overall plenum rated PVC jacket for low-voltage electronic cable applications
SKU: P122F


• Cable suitable for installation under NEC (NFPA 70) article 725 and article 760 for guidelines
• UL listed as type CL3P per UL standard 13 and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding12 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Standards
Maximum operating voltage300V
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.228”
ColorRed
RipcordYes
Weight54 Lbs/Mft
Assembly
Nominal Lay Length4.00” LHL (3.00 Tw/Ft)
ShieldN/A
Drain WireN/A
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.009”
Color CodeBlack, Red
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171203 12AWG 2C (UL) FPLP OR (UL) CL3P 75’C “ROHS II” REACH MADE IN USA FT-6
Footage MarkersYes
