P124FS

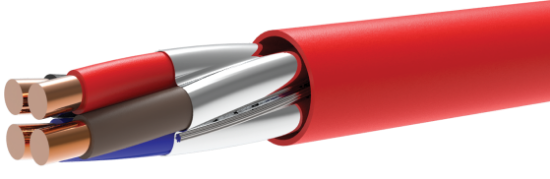

12 AWG 4 conductor solid bare copper wire with plenum rated PVC insulation, shielded and overall plenum rated PVC jacket for low-voltage electronic cable applications
SKU: P124FS


• Cable suitable for installation under NEC (NFPA 70) article 725 and article 760 for guidelines
• UL listed as type CL3P per UL standard 13 and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding12 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.009”
Color CodeBlack, Red, Brown, Blue
Assembly
Nominal Lay Length4.00” LHL (3.00 Tw/Ft)
ShieldAluminum Mylar – 100% Coverage
Drain Wire24AWG 7 Strand Tinned Copper
Jacket
MaterialPlenum rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.270”
ColorRed
RipcordYes
Weight103 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 12AWG 4C (UL) FPLP OR (UL) CL3P 75’C “ROHS II” REACH MADE IN USA FT-6
Footage MarkersYes
Standards
Maximum operating voltage300V
