14AWG 2C 7STR BC NS FPLP/CL3P 75C RED
SKU: P142F7

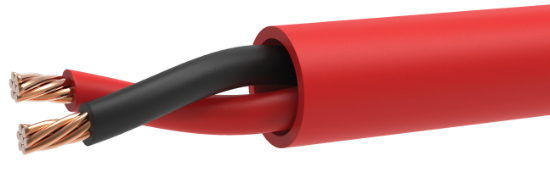

14 AWG 2C 7 STRAND BARE COPPER WIRE WITH .009" SGPVC INSULATION, NON-SHIELDED, OVERALL .015" SGPVC JACKET RED.

(UL) FPLP OR (UL) CL3P 75'C "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding14 Awg 7 Strand
MaterialBare Copper Wire
Conductor Count2
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.009"
Color CodeBlack, Red
Assembly
Nominal Lay Length2.75”
ShieldN/A
Drain WireN/A
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.015"
Diameter0.212”
ColorRed
RipcordYes
Weight38 lbs per mft
Nominal Diameter0.212”
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171202 14AWG 2C 75C (UL) CL3P OR FPLP FT6 “ROHS COMPLIANT” MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum operating voltage300V
Operating Temperature Range-20C TO 75C
