P144FS

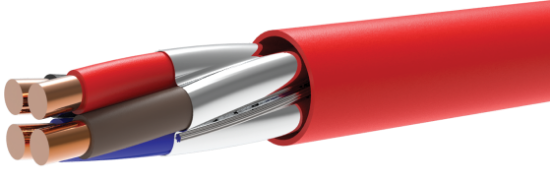

14AWG 4C SOLID BC SHIELDED FPLP/CL3P 75C RED
SKU: P144FS


14 AWG 4C SOLID BARE COPPER WIRE

WITH .009" SGPVC INSULATION, OVERALL

ALUMINUM MYLAR TAPE SHIELD WITH A

24 AWG 7 STRAND TINNED COPPER DRAIN

WIRE, OVERALL .015" SGPVC JACKET RED.

(UL) FPLP OR (UL) CL3P 75'C "ROHS II"

REACH FT-6 MADE IN USA

CC: BLACK, RED, BROWN, BLUE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding14 Awg Solid
MaterialBare Copper Wire
Conductor Count4
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.009"
Color CodeBlack, Red, Brown, Blue
Assembly
Nominal Lay Length4.00”
ShieldAluminum Mylar Tape Shield - 100% Coverage
Drain Wire24 Awg 7 Strand Tinned Copper Wire
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.015"
Diameter0.230”
ColorRed
RipcordYes
Weight69 lbs per mft
Nominal Diameter0.230”
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171202 14AWG 4C 75C SHIELDED (UL) CL3P OR FPLP FT6 "ROHS COMPLIANT" MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum operating voltage300V
Operating Temperature Range-20C TO 75C
