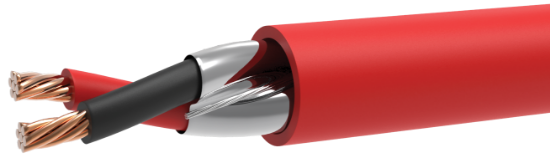

Picture of P162FS7
Picture of P162FS7
Picture of P162FS7
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

P162FS7

Not what you were looking for?
16/2C 7STR BC OAS FPLP/CMP/CL3P 75C RED
SKU: P162FS7


16 AWG 2C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET RED.

(UL) FPLP OR (UL) CMP C(UL)US OR (UL) CL3P 75'C FT-6 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 Awg 7 Strand
MaterialBare Copper Wire
Conductor Count2
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.009"
Color CodeBlack, Red
Assembly
Nominal Lay Length3.50”
ShieldAluminum Mylar Tape Shield - 100% Coverage
Drain Wire24 Awg 7 Strand Tinned Copper Wire
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.015"
Diameter0.178”
ColorRed
RipcordYes
Weight26 lbs per mft
Nominal Diameter0.172”
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171202 16AWG 2C 75°C (UL) CL3P OR FPLP OR C(UL)US CMP FT-6 “ROHS COMPLIANT” MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum operating voltage300V
Operating Temperature Range-20C TO 75C
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
