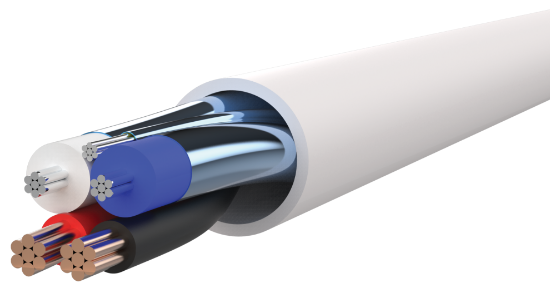

P162PFF222S/485

Elements

Element 1:

16 AWG 1PAIR UNSHIELDED

Conductor
AWG Size & Stranding: 16 AWG 7 Strands Class C
Material: Annealed Bare Copper
Conductor Count: 1 Pair

Insulation
Material: Plenum Rated Polyvinylchloride
Wall Thickness: 0.010”
Diameter: 0.077” ± 0.002”
Color code: Black x Red

Assembly
Nominal Lay Length: Common Axis Cabled

Element 2:

22 AWG 1 PAIR SHIELDED RS485

Conductor
AWG Size & Stranding: 22 AWG 7 Strands Class B
Material: Annealed Tinned Copper
Conductor Count: 1 Pair

Insulation
Material: Plenum Rated Foam FEP
Wall Thickness: 0.025”
Diameter: 0.078” ± 0.002”
Color code: Blue x White

Assembly
Pair Lay Length: Common Axis Cabled
Pair Drain Wire: 24 AWG 7 Strands Tinned Copper
Pair Shield: Aluminum/Mylar Tape – 100% coverage (Foil Facing In)

Nominal Electrical Characteristics
Impedance: 120 Ω
Capacitance: 12.5 pF/ft
DC Resistance: 23.15 Ω/Mft @ 20°C Maximum

Assembly - Overall Cable

Nominal Lay Length:

5.00” LHL Nominal (2.4 tw/ft)

Jacket - Overall Cable

Material:

Plenum Rated Polyvinylchloride

Wall Thickness:

0.018”

Diameter:

0.228” ± 0.015”

Color:

Natural

Ripcord:

Yes

Weight:

42 Lbs/Mft.

Markings - Overall Cable

Type:

Cable permanently identified via surface inkjet print

Legend:

LAKE CABLE E171202 OSDP COMBO READER 16/2C + 22/1PR RS485 120OHM ZONE A B C D E 0 1 2 3 4 5 6 7 8 75C (UL) CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA

Footage Markers:

Yes (Ascending/Descending)

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) article 800
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Operating Voltage: 300V RMS
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
