P162PFF222S/485-00

16/2 PVC + 22/1PRS FFEP DATA CMP 75C BLACK

SKU: P162PFF222S/485-00

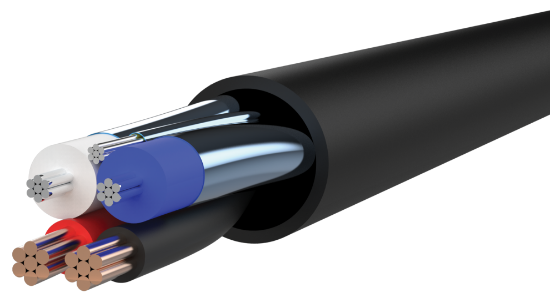

16 AWG 1 PAIR 7 STRAND BARE COPPER WIRE WITH .010" SGPVC INSULATION, NON-SHIELDED, + 22 AWG 1 PAIR 7 STRAND TINNED COPPER WIRE WITH .025" FOAMED FEP INSULATION, ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .018" SGPVC JACKET BLACK

(UL) CL3P OR CMP C(UL)US FT6 75C "ROHS COMPLIANT" MADE IN USA
CC: 16 AWG 1 PAIR: BLACK & RED
CC: 22 AWG 1 PAIR RS 485: BLUE & WHITE
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Elements
Element 1	16 AWG 1PAIR UNSHIELDED Conductor AWG Size & Stranding: 16 AWG 7 Strands Class C Material: Annealed Bare Copper Conductor Count: 1 Pair Insulation Material: Plenum Rated Polyvinylchloride Wall Thickness: 0.010” Diameter: 0.077” ± 0.002” Color code: Black x Red Assembly Nominal Lay Length: Common Axis Cabled
Element 2	22 AWG 1 PAIR SHIELDED RS485 Conductor AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Tinned Copper Conductor Count: 1 Pair Insulation Material: Plenum Rated Foam FEP Wall Thickness: 0.025” Diameter: 0.078” ± 0.002” Color code: Blue x White Assembly Pair Lay Length: Common Axis Cabled Pair Drain Wire: 24 AWG 7 Strands Tinned Copper Pair Shield: Aluminum/Mylar Tape – 100% coverage (Foil Facing In) Nominal Electrical Characteristics Impedance: 120 Ω Capacitance: 12.5 pF/ft DC Resistance: 23.15 Ω/Mft @ 20°C Maximum
Overall Assembly
Nominal Lay Length (All Elements)	5.00” LHL Nominal (2.4 tw/ft)
Jacket - Overall Cable
Material	Plenum Rated Polyvinylchloride
Wall Thickness	0.018”
Diameter	0.228” ± 0.015”
Color	Black
Ripcord	Yes
Weight	42 Lbs/Mft
Markings - Overall Cable
Footage Markers	Yes (Ascending/Descending)
Type	Cable permanently identified via surface inkjet print
Legend	LAKE CABLE E171202 OSDP COMBO READER 16/2C + 22/1PR RS485 120OHM ZONE A B C D E 0 1 2 3 4 5 6 7 8 75C (UL) CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA
Approvals
Approvals List	• Cable suitable for installation under NEC (NFPA 70) article 800 • Cable suitable for installation in Canada under Section 60 of CEC, Part I • C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17 • UL listed as CL3P per UL standard 13 • Cable meets NFPA 262 (Steiner tunnel) flame test • Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive • Operating Voltage: 300V RMS • Made in the USA • WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.

Copper Price 07/29/2025 5.6160
