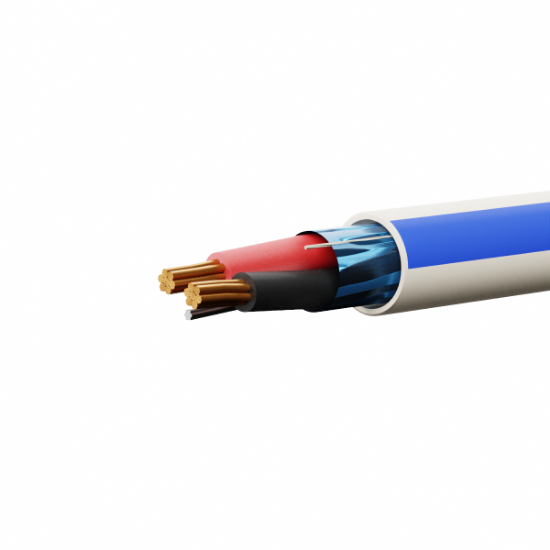

Picture of P182CS-98/06JC
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

P182CS-98/06JC

Not what you were looking for?
18 AWG 2 conductor 7 strand bare copper wire, plenum rated PVC insulation, shielded, with an overall plenum rated PVC jacket
SKU: P182CS-98/06JC


• Refer to NEC (NFPA 70) article 725 and article 800 for installation guidelines
• UL listed as type CL3P per UL standard 13 and as type CMP c(UL)us 75°C FT-6 per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Conductor

AWG Size & Stranding:
18 AWG 7 Strands Class B
Material:
Annealed Bare Copper
Conductor Count:
2 Conductors

Insulation

Material:
Plenum Rated Polyvinylchloride
Wall Thickness:
0.007”
Color Code:
Black & Red

Assembly

Nominal Lay Length:
2.00” LHL (6 Tw/Ft)
Shield:
Aluminum Mylar Tape – 100% Coverage
Drain Wire:
24 AWG 7 Strand Tinned Copper

Jacket

Material:
Plenum Rated Polyvinylchloride
Wall Thickness:
0.015”
Diameter:
0.151”
Color:
Natural/Blue
Ripcord:
Yes
Weight:
21 Lbs/Mft

Markings

Type:
Cable shall be permanently identified via surface inkjet print
Legend:
JCI- GENERAL PURPOSE E171197 18AWG 2C SHLD (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS”
Footage Markers:
Yes

Standards

Maximum Voltage:
300V
