P182F7

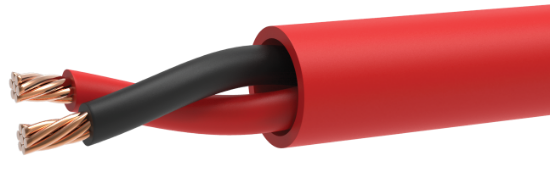

18 AWG 2 conductor 7 strands bare copper wire with PVC insulation, unshielded and overall PVC jacket for low-voltage electronic cable applications
SKU: P182F7


• Cable suitable for installation under NEC (NFPA 70) article 800 and article 760 for guidelines
• UL listed as type CMP per UL standard 444 and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 7 Strands class B
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Standards
Maximum operating voltage300V
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.148”
ColorRed
RipcordYes
Weight18 Lbs/Mft
Assembly
Nominal Lay Length2.00” LHL (6.00 Tw/Ft)
ShieldN/A
Drain WireN/A
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171203 18AWG 2C (UL) FPLP OR (UL) CMP C(UL)US 75’C FT-6 “ROHS” “ROHS II” REACH MADE IN USA
Footage MarkersYes
