P182FS7

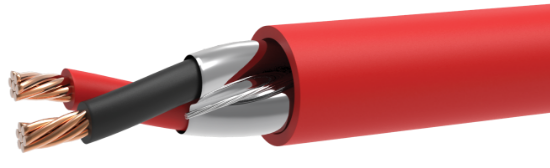

18 AWG 2 conductor stranded bare copper wire with plenum rated PVC insulation, shielded and overall plenum rated PVC jacket for low-voltage electronic cable applications
SKU: P182FS7


• Made in the USA
• Cable suitable for installation under NEC (NFPA 70) article 800 and article 760 for guidelines
• UL listed as type CMP C(UL)US per UL standard 13 and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 7 Strand class B
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red
Assembly
Nominal Lay Length3.00” LHL (4.00 Tw/Ft)
ShieldAluminum Mylar – 100% Coverage
Drain Wire24AWG 7 Strand Tinned Copper
Jacket
MaterialPlenum rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.150”
ColorRed
RipcordYes
Weight20 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 18AWG 2C (UL) FPLP OR (UL) CMP C(UL)US 75’C FT-6 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
