P184FS

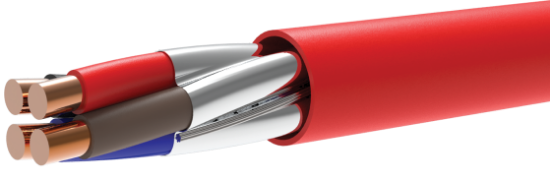

18 AWG 4 conductor solid bare copper wire with plenum rated PVC insulation, shielded and overall plenum rated PVC jacket for low-voltage electronic cable applications
SKU: P184FS

• Made in the USA
• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 for guidelines
• UL listed as type CMP C(UL)US per UL standard 13 and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Standards
Maximum operating voltage300V
Jacket
MaterialPlenum rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.174”
ColorRed
RipcordYes
Weight34 Lbs/Mft
Assembly
Nominal Lay Length3.00” LHL (4.00 Tw/Ft)
ShieldAluminum Mylar – 100% Coverage
Drain Wire24AWG 7 Strand Tinned Copper
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.009”
Color CodeBlack, Red, Brown, Blue
Electricals
Impedance36.7 Ω +/-10%
Capacitance54.1 pF/ft. Maximum
DC Resistance6.80 Ω/Mft. @ 20°C
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171203 18AWG 4C (UL) FPLP OR (UL) CMP C(UL)US 75’C FT-6 “ROHS II” REACH MADE IN USA
Footage MarkersYes
