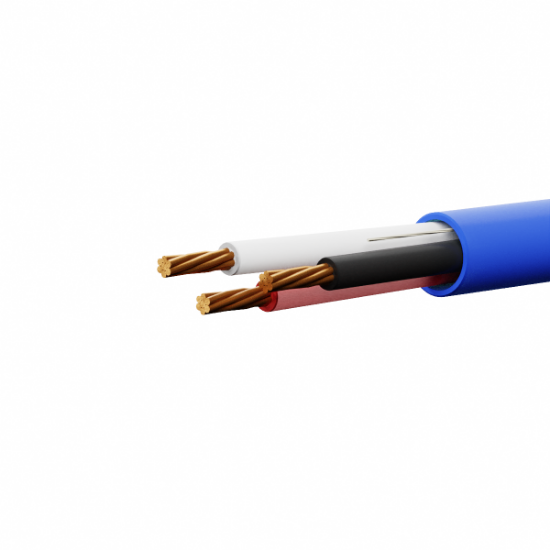

Picture of P203C-06TEC
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

P203C-06TEC

Not what you were looking for?
20AWG 3 conductor 7 strand bare copper wire, plenum rated PVC insulation, unshielded, with an overall plenum rated PVC jacket for low-voltage electronic cable applications
SKU: P203C-06TEC


• Refer to NEC (NFPA 70) article 725 and article 800 for installation guidelines
• UL listed as type CL3P per UL standard 13 and as type CMP 75°C per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Conductor

AWG Size & Stranding:
20 AWG 7 Strands Class B
Material:
Annealed Bare Copper
Conductor Count:
3 Conductors

Insulation

Material:
Plenum Rated Polyvinylchloride
Wall Thickness:
0.007”
Color Code:
Black, Red, White

Assembly

Nominal Lay Length:
2.50” LHL (4.8 Tw/Ft)

Jacket

Material:
Plenum Rated Polyvinylchloride
Wall Thickness:
0.014”
Diameter:
0.140”
Color:
Blue
Ripcord:
Yes
Weight:
18 Lbs/Mft

Markings

Type:
Cable shall be permanently identified via surface inkjet print
Legend:
TEC VALVES/DAMPERS E171197 20AWG 3C (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS”
Footage Markers:
Yes

Standards

Maximum operating voltage:
300V

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
