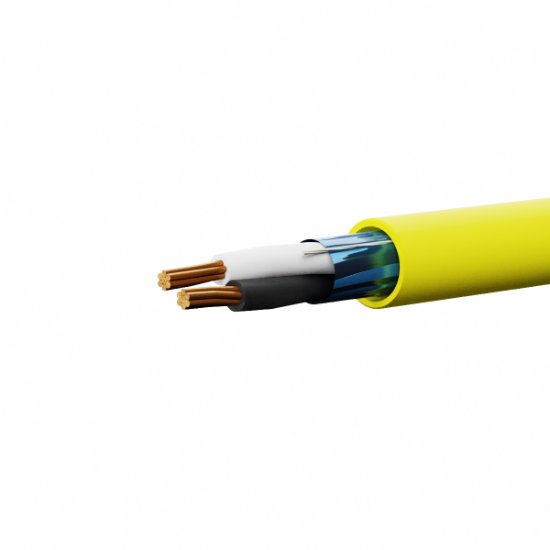

Picture of P222CS-04BS
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

P222CS-04BS

Not what you were looking for?
22 AWG 2 conductor 7 strand bare copper wire, plenum rated PVC insulation, shielded, with an overall plenum rated PVC jacket. (UL) CL3P or CMP C(UL)US 75’C FT-6 for BAC/TALK SENSORS
SKU: P222CS-04BS


• Cable suitable for installations under NEC (NFPA 70) article 725 and article 800 guidelines
• UL listed as type CL3P per UL standard 13 and as type CMP c(UL)us 75°C FT-6 per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Conductor

AWG Size & Stranding:
22 AWG 7 Strands Class B
Material:
Annealed Bare Copper
Conductor Count:
2 Conductors

Insulation

Material:
Plenum Rated Polyvinylchloride
Wall Thickness:
0.007”
Color Code:
Black, White

Assembly

Nominal Lay Length:
2.50” LHL (6.0 Tw/Ft)
Shield:
Aluminum Mylar Tape – 100% Coverage
Drain Wire:
24 AWG 7 Strand Tinned Copper

Jacket

Material:
Plenum Rated Polyvinylchloride
Wall Thickness:
0.015”
Diameter:
0.117”
Color:
Yellow
Ripcord:
Yes
Weight:
12 Lbs/Mft

Markings

Type:
Cable shall be permanently identified via surface inkjet print
Legend:
BAC/TALK SENSORS A B C D E 0 1 2 3 4 5 6 7 8 9 E171197 22AWG 2C SHLD (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS”
Footage Markers:
Yes

Standards

Maximum operating voltage:
300V
