P222F

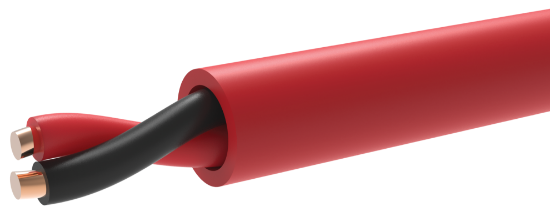

22 AWG 2 conductor solid bare copper wire with plenum rated PVC insulation, unshielded and overall plenum rated PVC jacket for low-voltage electronic cable applications

SKU: P222F

• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 for guidelines
• UL listed as type CMP per UL standard 444 and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	22 AWG Solid
Material	Annealed Bare Copper
Conductor Count	2 Conductors
Insulation
Material	Plenum Rated Polyvinylchloride
Wall Thickness	0.009”
Color Code	Black, Red
Assembly
Nominal Lay Length	2.50” LHL (4.8 Tw/Ft)
Shield	N/A
Drain Wire	N/A
Jacket
Material	Plenum Rated Polyvinylchloride
Wall Thickness	0.015”
Diameter	0.117”
Color	Red
Ripcord	Yes
Weight	10 Lbs/Mft
Markings
Type	Cable permanently identified via surface inkjet print
Legend	LAKE CABLE E171202 22AWG 2C (UL) FPLP OR (UL) CMP C(UL)US 75’C FT-6 “ROHS II” REACH MADE IN USA
Footage Markers	Yes
Standards
Maximum operating voltage	300V

Copper Price 9/18/2024 4.2375
