P222FS

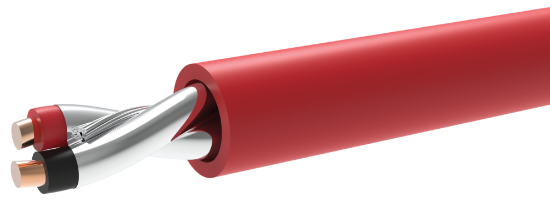

22 AWG 2 conductor solid bare copper wire with plenum rated PVC insulation, shielded and overall plenum rated PVC jacket for low-voltage electronic cable applications
SKU: P222FS


• UL listed as type CMP C(UL)US per UL standard 13 and as type FPLP 75°C per UL standard 1424
• Cable suitable for installation under NEC (NFPA 70) article 760 and article 800 for guidelines
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.009”
Color CodeBlack, Red
Assembly
Nominal Lay Length2.50” LHL (4.80 Tw/Ft)
ShieldAluminum Mylar – 100% Coverage
Drain Wire24AWG 7 Strand Tinned Copper
Jacket
MaterialPlenum rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.119”
ColorRed
RipcordYes
Weight12 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 22AWG 2C (UL) FPLP OR (UL) CMP C(UL)US 75’C FT-6 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
