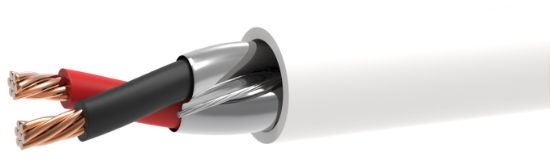

22AWG 4C 7STR BC OAS CMP/CL3P/FPLP 75C NATURAL
SKU: P224CS


22 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" NATURAL SGPVC JACKET NATURAL.

(UL) CL3P OR FPLP OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA

CC: BLACK, RED, WHITE, GREEN

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialBare Copper Wire
Conductor Count4
AWG & Stranding22 Awg 7 Strand
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.007"
Color CodeBlack, Red, White, Green
Assembly
Nominal Lay Length3.00”
ShieldAluminum Mylar Tape Shield - 100% Coverage
Drain Wire24 Awg 7 Strand Tinned Copper Wire
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.015"
Diameter0.143”
ColorNatural
RipcordYes
Weight17 lbs per mft
Nominal Diameter0.134”
Markings
TypePermanent Inkjet Surface Print
Print LegendLAKE CABLE E171202 22AWG 4C (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS”
Footage MarkersAscending/Descending
LegendLAKE CABLE E171202 22AWG 4C SHIELDED 75C (UL) CL3P OR FPLP OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA
Standards
Maximum Voltage300V
Maximum operating voltage300V
Operating Temperature Range-20C TO 75C
