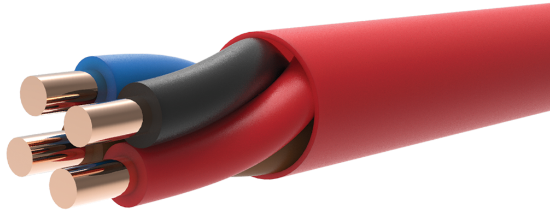

22AWG 4C SLD BC UNS CMP/CL3P/FPLP 75C RED
SKU: P224F


22 AWG 4C SOLID BARE COPPER WIRE WITH .009" SGPVC INSULATION, NON-SHIELDED, OVERALL .015" SGPVC JACKET RED.
LEGEND: (UL) FPLP OR CMP C(UL)US 75'C FT-6 "ROHS"
CC: BLACK, RED, BROWN, BLUE

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG Solid
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.009”
Color CodeBlack, Red, Brown & Blue
Assembly
Nominal Lay Length3.00” LHL (4.00 Tw/FT)
ShieldN/A
Drain WireN/A
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.135”
ColorRed
RipcordYes
Weight16 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 22AWG 4C (UL) FPLP OR (UL) CMP C(UL)US 75’C FT-6 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
Approvals
Approvals List

• Cable suitable for installation under (NFPA 70) article 760 and article 800 guidelines
• UL listed as type FPLP 75°C per UL standard 1424 and type CMP per UL standard 13
• All materials used in the manufacture of this cable are ROHS II and REACH compliant
• Made in the USA

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (235) Updated June 14, 2023
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
