22AWG 4C SLD BC OAS CMP/CL3P/FPLP 75C RED
SKU: P224FS

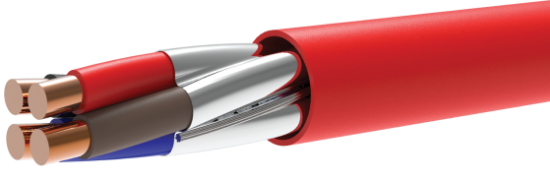

22 AWG 4C SOLID BARE COPPER WIRE WITH .009" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" RED SGPVC JACKET.
(UL) CL3P OR FPLP OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA
CC: BLACK, RED, BROWN, BLUE
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Conductor

AWG Size & Stranding:
22 AWG Solid
Material:
Annealed Bare Copper
Conductor Count:
4 Conductors

Insulation

Material:
Plenum Rated Polyvinylchloride
Wall Thickness:
0.009”
Color Code:
Black, Red, Brown, Blue

Assembly

Nominal Lay Length:
2.50” LHL (4.8 Tw/Ft)
Shield:
Aluminum Mylar – 100% Coverage
Drain Wire:
24AWG 7 Strand Tinned Copper

Jacket

Material:
Plenum rated Polyvinylchloride
Wall Thickness:
0.015”
Diameter:
0.137”
Color:
Red
Ripcord:
Yes
Weight:
18 Lbs/Mft

Markings

Type:
Cable permanently identified via surface inkjet print
Legend:
LAKE CABLE E171202 22AWG 4C (UL) FPLP OR (UL) CMP C(UL)US 75’C FT-6 “ROHS II” REACT MADE IN USA
Footage Markers:
Yes

Standards

Maximum operating voltage:
300V

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) article 800 and article 760 for guidelines
• UL listed as type CMP C(UL)US per UL standard 13 and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA
