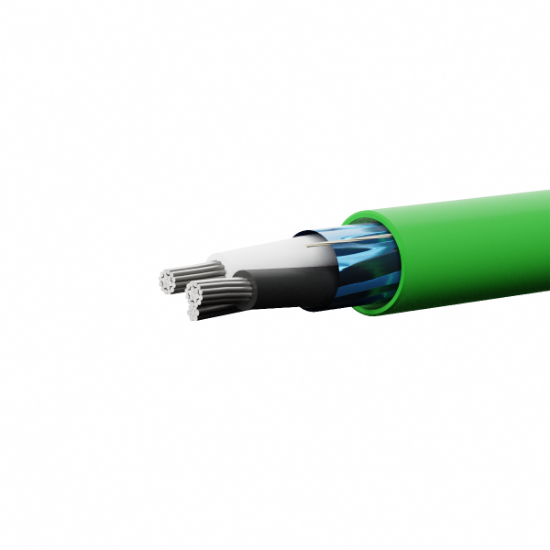

PFF182CST19-05

18 AWG 2 conductor 19 strand tinned copper wire, plenum rated Foam FEP insulation, shielded, with an overall plenum rated PVC jacket.
SKU: PFF182CST19-05


• Refer to NEC (NFPA 70) article 725, 760, and article 800 for installation guidelines
• Made in the USA
• UL listed as type CL3P per UL standard 13, as type CMP c(UL)us per UL standard 444, and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Electricals
Impedance49.6 Ω +/-10%
Capacitance26.5 pF/ft. +/-10%
DC Resistance5.84 Ω/Mft. @ 20°C
Conductor
AWG Size & Stranding18AWG 19 Strands Class C
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialPlenum rated Foam FEP
Wall Thickness0.009”
Color CodeBlack, White
Assembly
Nominal Lay Length2.50” LHL (4.80 Tw/Ft)
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire20 AWG 7 Strand Tinned Copper
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.014”
Diameter0.180”
ColorGreen
RipcordYes
Weight25 Lbs/Mft
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendTRANE GREEN HVAC CABLE E171197 18AWG 2C (UL) CMP C(UL)US OR (UL) CL3P OR (UL) FPLP 75’C FT-6 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
