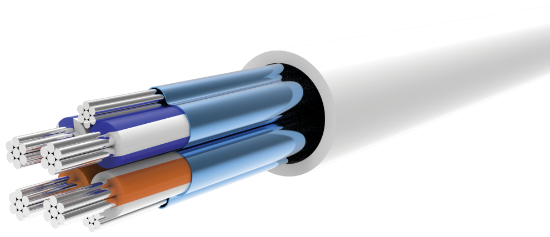

22AWG 2PR 7XTC FFEP/SGPVC EPS CMP/CL3P/FPLP WHITE
SKU: PFF222EPST/485-09


22 AWG 2 PAIR 7 STRAND TINNED COPPER WIRE WITH .026" FOAMED FEP INSULATION, EACH PAIR IS INDIVIDUALLY SHIELDED WITH FOIL-FREE EDGED ALUMINUM MYLAR TAPE SHIELD WITH 24 AWG 7 STRAND TINNED COPPER DRAIN WIRES, OVERALL .018" SGPVC JACKET WHITE

(UL) CL3P OR FPLP OR C(UL)US CMP 75C FT6 "ROHS COMPLIANT" MADE IN USA
CC: WHITE/BLUE & BLUE/WHITE, WHITE/ORANGE & ORANGE/WHITE
PRINT: LAKE CABLE RS485 120OHM OSDP ZONE A B C D E 0 1 2 3 4 5 6 7 8 9
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Conductor

AWG Size & Stranding:
22 AWG 7 Strand
Material:
Tinned Copper Wire
Conductor Count:
2 Pair RS485

Insulation

Material:
Foamed FEP
Wall Thickness:
.026"
Color Code:
White/Blue & Blue/White, White/Orange & Orange/White

Assembly

Cable Lay Length:
3.00” LHL (4.00 Tw/Ft)
3.00” LHL (4.00 Tw/Ft)
Cable Drain Wire:
24 AWG 7 Strand Tinned Copper
Pair Lay Length:
Common-Axis Cabled
Pair Shield:
FFE Aluminum Mylar – 100% Coverage (Foil Facing In)

Jacket - Overall Cable

Material:
Plenum-Rated Polyvinylchloride
Color:
White
Wall Thickness:
.018"
Diameter:
0.232” ± 0.015”
Weight:
35 Lbs/Mft
Ripcord:
Yes

Markings - Overall Cable

Legend:
LAKE CABLE RS485 120OHM OSDP ZONE A B C D E 0 1 2 3 4 5 6 7 8 9 (UL) CL3P OR FPLP OR C(UL)US CMP 75C FT6 "ROHS COMPLIANT" MADE IN USA
Footage Markers:
Acsending/Descending

Nominal Electrical Characteristics

Impedance:
120 Ω
Capacitance:
11 pF/ft.
DC Resistance:
17.04 Ω/Mft. @ 20°C

Standards

Maximum operating voltage:
300V
Operating Temperature Range:
75C

Approvals

Approvals List:

• Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424
• Cable meets NFPA 262 (Steiner tunnel) flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
