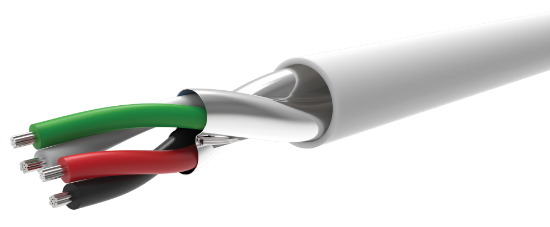

PFF222PRCST/X-09OSDP

Conductor

AWG Size & Stranding:

22 AWG 7 Strand

Material:

Tinned Copper Wire

Conductor Count:

2 Pair

Insulation

Material:

Foamed FEP

Wall Thickness:

.021"

Color Code:

Black & Red, White & Green

Assembly

Shield:

Aluminum Mylar Tape Shield - 100% Coverage

Cable Drain Wire:

24 AWG 7 Strand Tinned Copper

Jacket - Overall Cable

Material:

Plenum-Rated Polyvinylchloride

Color:

White

Wall Thickness:

.015"

Diameter:

.230"

Weight:

25

Ripcord:

Yes

Markings - Overall Cable

Legend:

LAKE CABLE RS485 120 OHM OSDP ZONE A B C D E 0 1 2 3 4 5 6 7 8 9 (UL) CL3P OR FPLP OR C(UL)US CMP FT6 75C "ROHS COMPLIANT" MADE IN USA

Footage Markers:

Acsending/Descending

Standards

Maximum operating voltage:

300V

Operating Temperature Range:

75C

Approvals

Approvals List:

Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
Cable suitable for installation in Canada under Section 60 of CEC, Part I
C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424
Cable meets NFPA 262 (Steiner tunnel) flame test
Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
Made in the USA
WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
